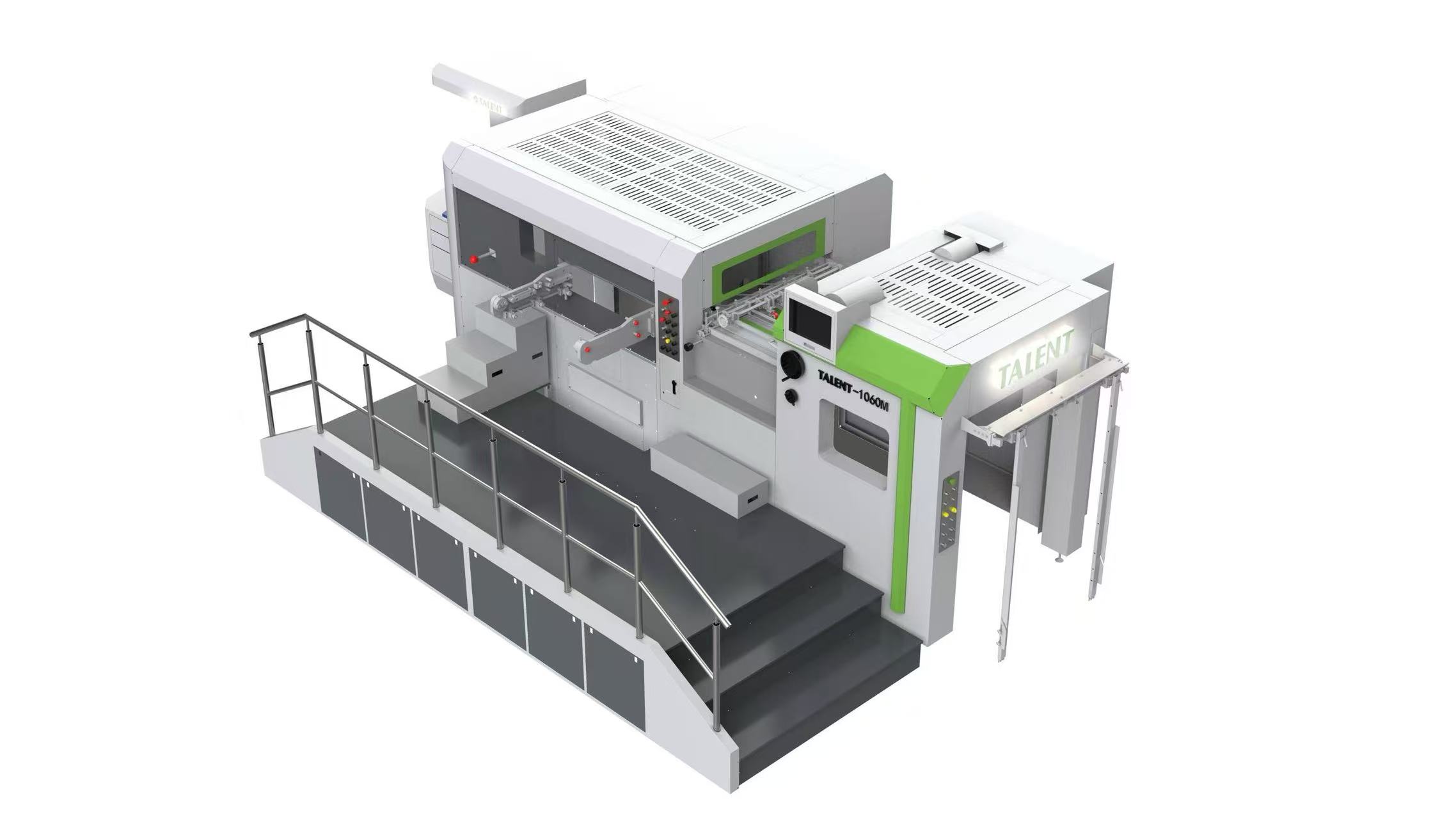

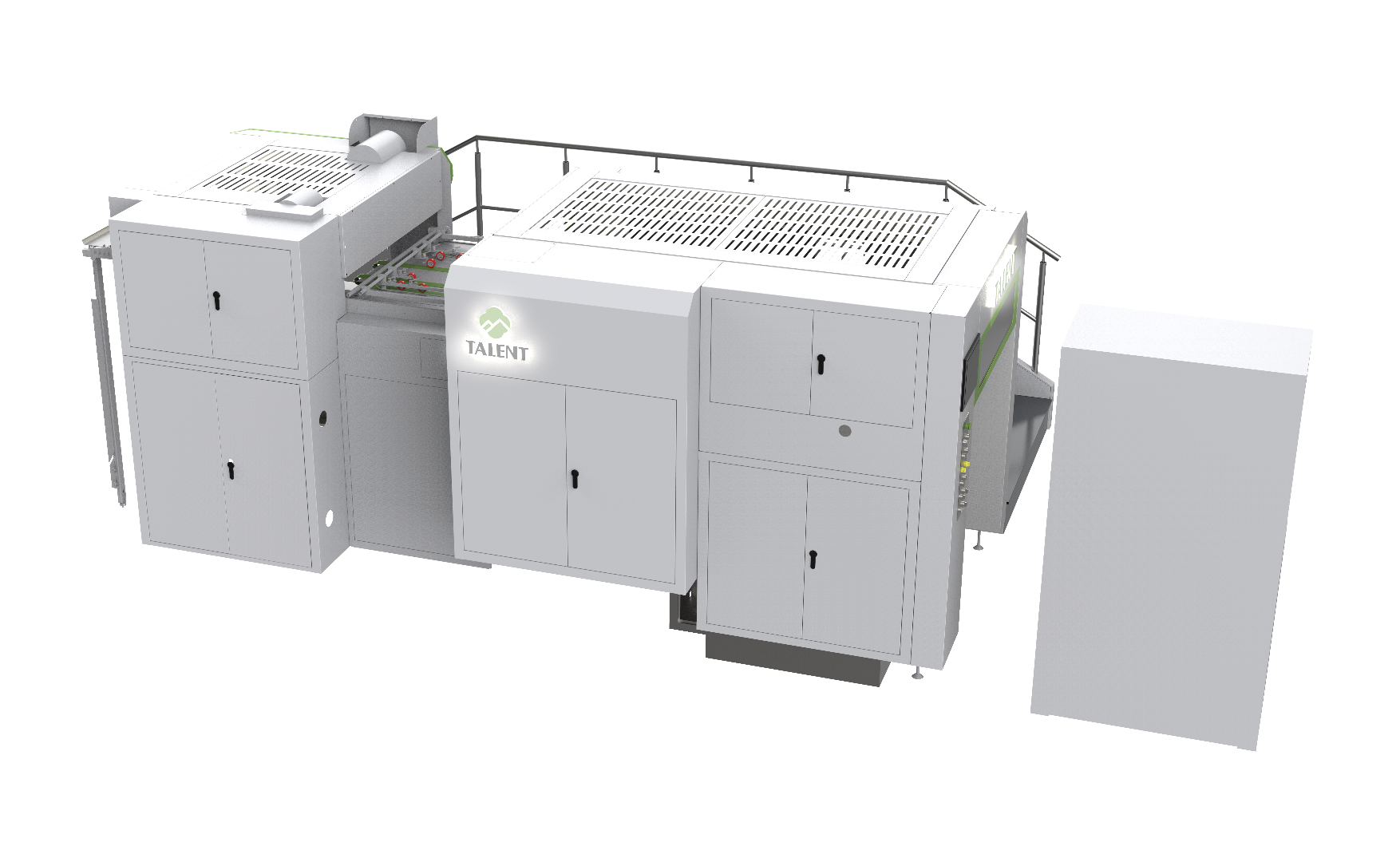

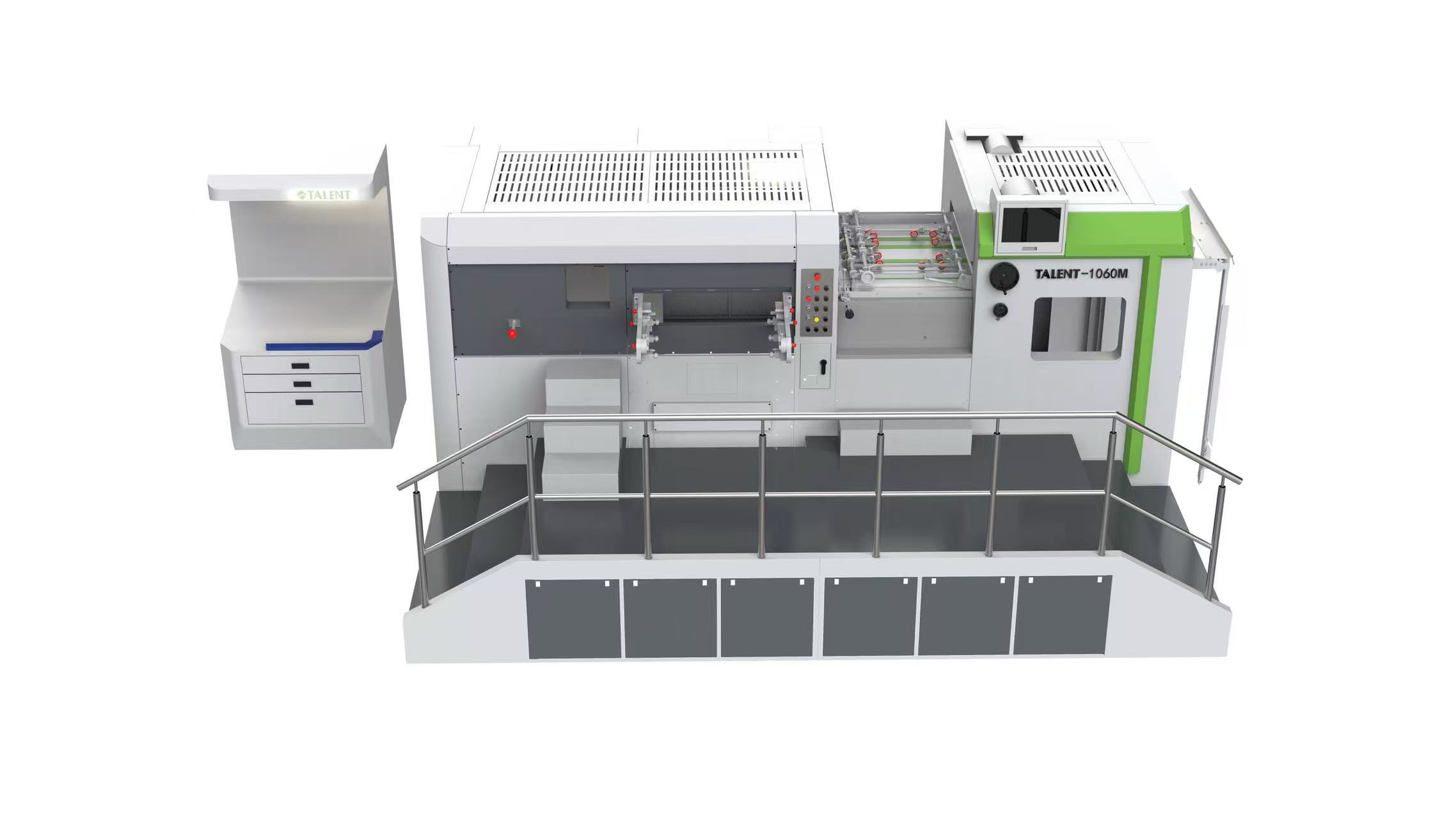

TALENT1060M-Automatic Die-Cutting Machine
| Automatic Die-Cutting Machine（TALENT060M） | |
| Max.paper size | 1060*760mm |
| Min.paper size | 400*350mm |
| Max.die-cutting size | 1050*750mm |
| Max. die-cutting pressure | 300T |
| Max.feeding stack(H)incl. wooden pallet | 1300mm |
| Max.feeding stack(H) | 1500mm |
| Max.mechanical speed | 7500sheets/hour |
| Paper available size | 70-2000g/㎡card board,corrugated board≤4mm |
| Pressure range | +2mm |
| Knife height | 23.8mm |
| Die-cutting precision | ≤±0.1card /0.25mm corrugated |
| Gripper margin min.size | ≥6mm |
| Pneumatic requirement | ≥0.6mpa |
| Main motor power | 11kw |
| Total powe | 20kw |
| Power supply | 380v 50hz 3p |
| Weight | ≈16T |
| Dimension | 6400*4300*2550mm |
| Dimension(without step platform and flip rack) | 6400*2400*2550mm |
1060M｜Automatic Die Cutting Machine (Core Standard Model)
Product Overview
The 1060M is a practical and efficient automatic die cutting machine focused on precise cutting performance and mechanical stability. It’s designed for standardized cutting operations with high productivity and low maintenance.
Key Advantages
Dedicated die cutting platform for creasing, partial cuts, and full cuts
Constructed with QT500-7 ductile cast iron wall plates for enhanced rigidity and vibration resistance
Long-life precision transmission system using imported chain and cam indexer
Fully equipped feeder and delivery units for intelligent and uninterrupted operation
Technical Highlights
High-speed feeder with four suction/four delivery heads, automatic correction, and double-sheet detection
External lubrication and oil temperature control system for smooth long-hour operation
Integrated SIEMENS PLC and control components ensure operational safety and reliability
Features include one-touch sample extraction, anti-paper-back detection, and paper stack safety monitoring
Applications
Daily-use cartons, food packaging, pharma leaflets, printed inserts, promotional boxes, and standardized paper-cutting projects
