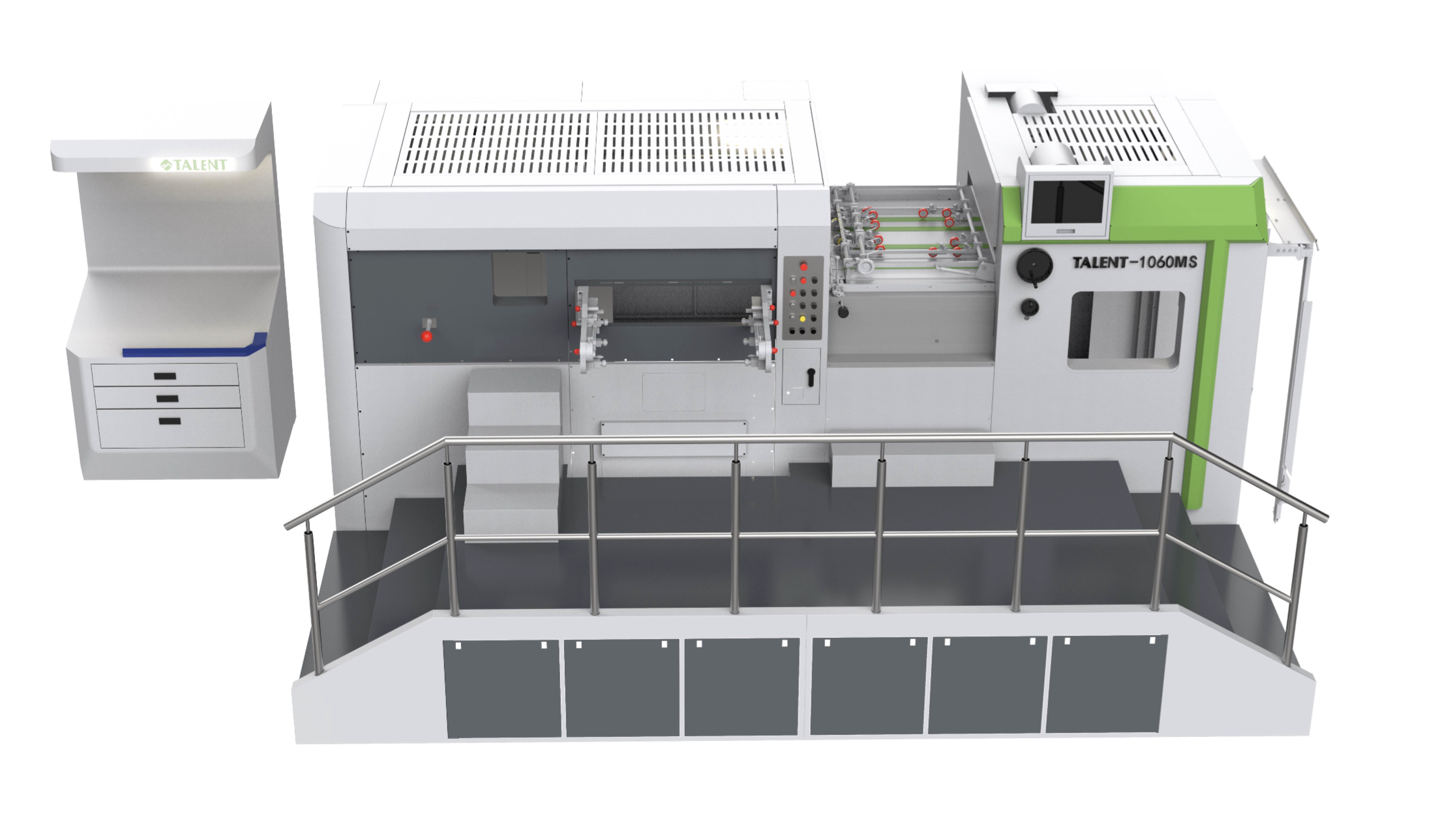

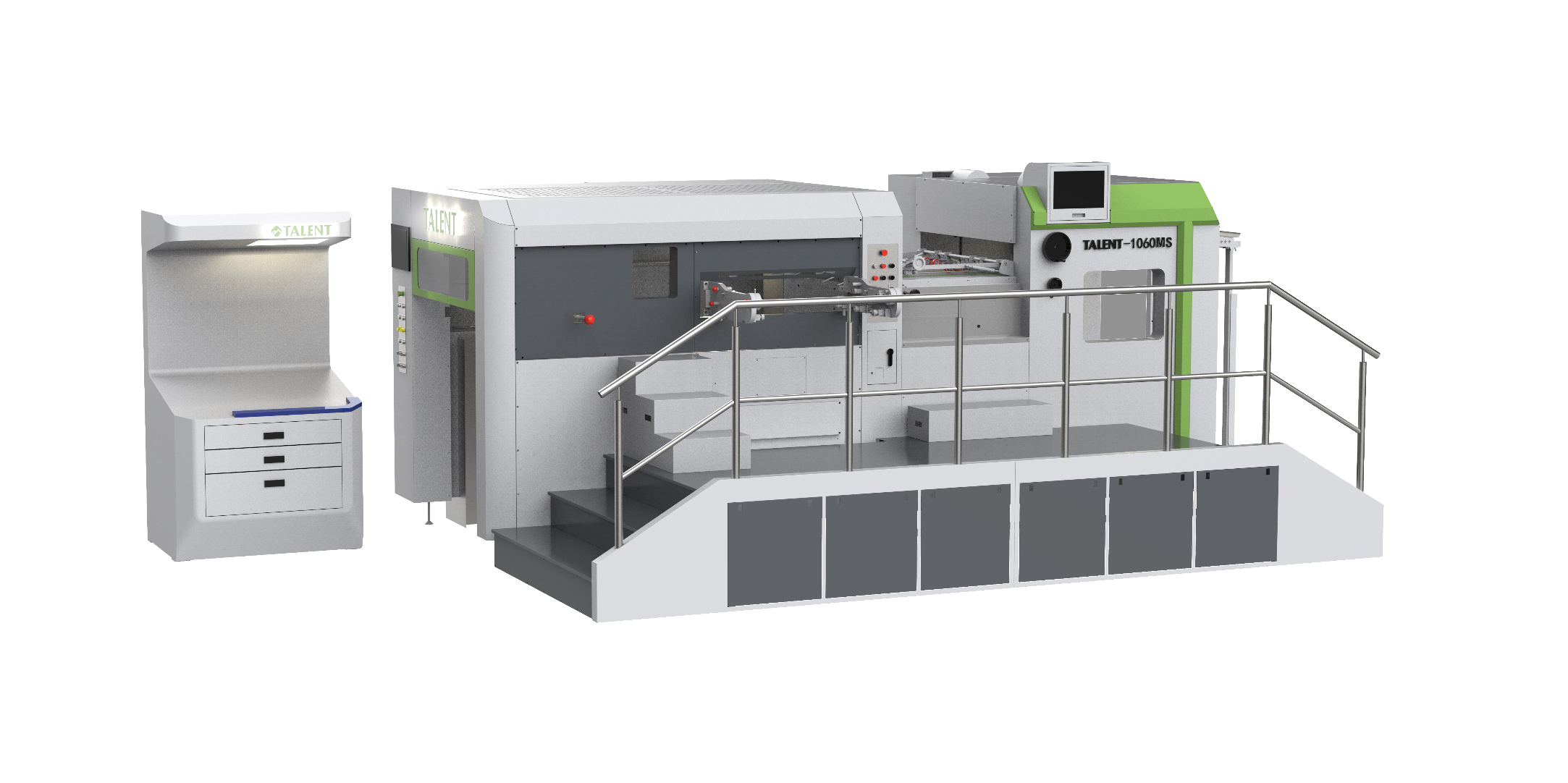

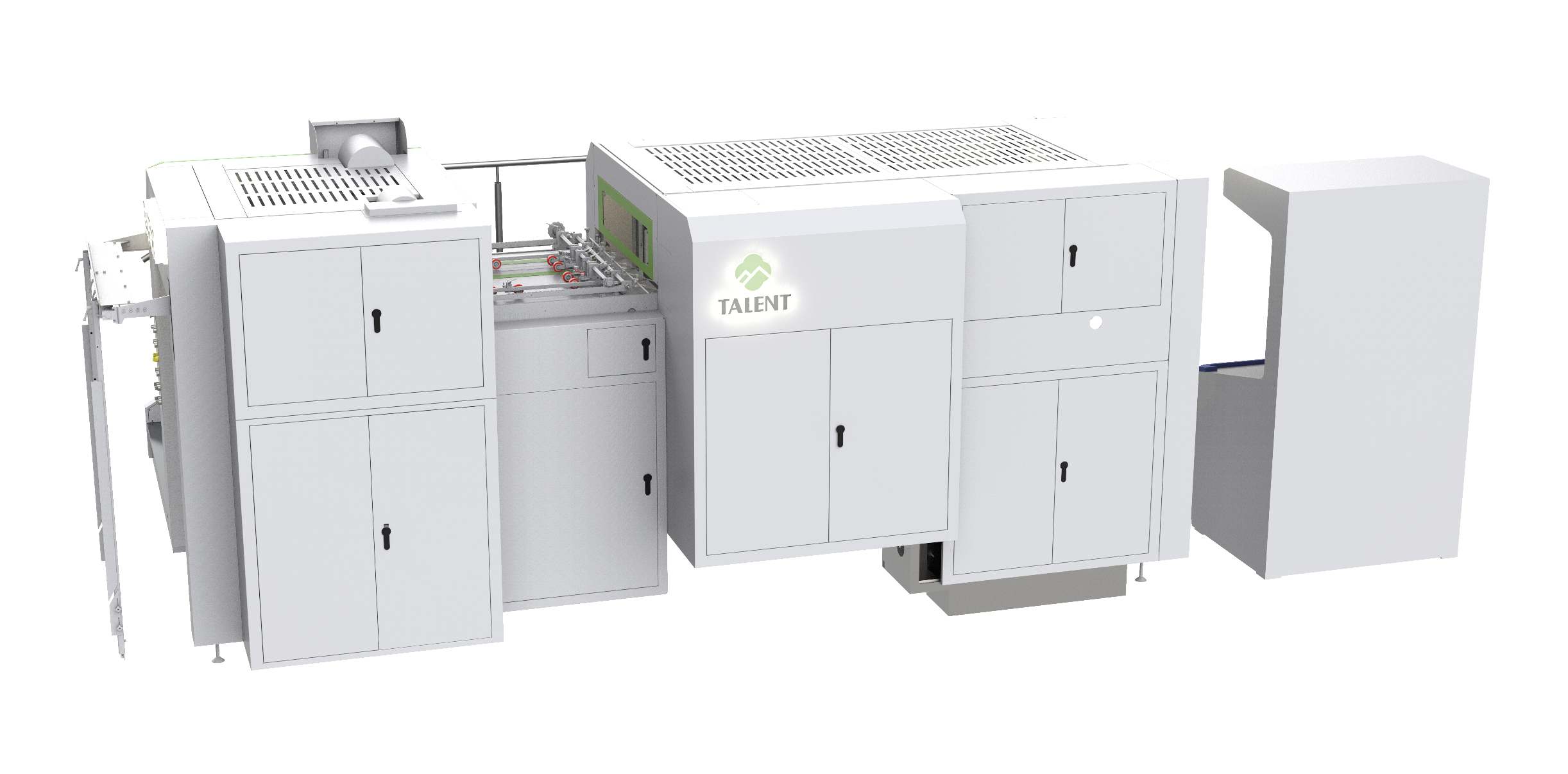

TALENT1060MS-Automatic Deep Embossing Die-Cutting Machine
| Automatic Deep Embossing Die-Cutting Machine（TALENT060MS） | |
| Max.paper size | 1060*760mm |
| Min.paper size | 400*350mm |
| Max.die-cutting size | 1050*750mm |
| Max. die-cutting pressure | 600T |
| Max.feeding stack(H)incl. wooden pallet | 1500mm |
| Max.feeding stack(H) | 1300mm |
| Max.mechanical speed | 7500sheets/hour |
| Paper available size | 70-2000g/㎡card board,corrugated board≤4mm |
| Pressure range | +2mm |
| Knife height | 23.8mm |
| Die-cutting precision | ≤±0.1card /0.25mm corrugated |
| Heating system | 12cells，40-180°C adjustable |
| Gripper margin min.size | ≥6mm |
| Pneumatic requirement | ≥0.6mpa |
| Main motor power | 15kw |
| Total powe | 45.5kw |
| Power supply | 380v 50hz 3p |
| Weight | ≈20T |
| Dimension | 6400*4300*2550mm |
| Dimension(without step platform and flip rack) | 6400*2400*2550mm |
1060MS｜Automatic Embossing & Die Cutting Machine (Heated Platform Model)
Product Overview
The 1060MS is specially engineered for high-pressure embossing and die cutting, equipped with 12 independent heating zones and a reinforced heavy-duty platform. It is ideal for processing materials that require thermal expansion and deep texture results.
Key Advantages
Customized embossing platform structure, designed for strong pressure and deep texture rendering
12-zone heating system optimized for consistent heat compensation across embossing zones
Supports a full range of die cutting processes including creasing, partial cutting, and complex mold setups
Delivers stable high-speed paper feeding and precise positioning with minimum manual intervention
Technical Highlights
Platform structure designed to absorb high pressure without deformation
Individual heating zones managed via intelligent touch control for thermal consistency
Includes feeder unit with side guide switching, micro-adjustment device, and drive-type conveying rollers
21.5” industrial display and ERP-ready integration ensure digital workflow compatibility
Applications
Textured packaging, hardcover artwork, embossed catalog covers, specialty paper embossing, multi-process decorative printing
