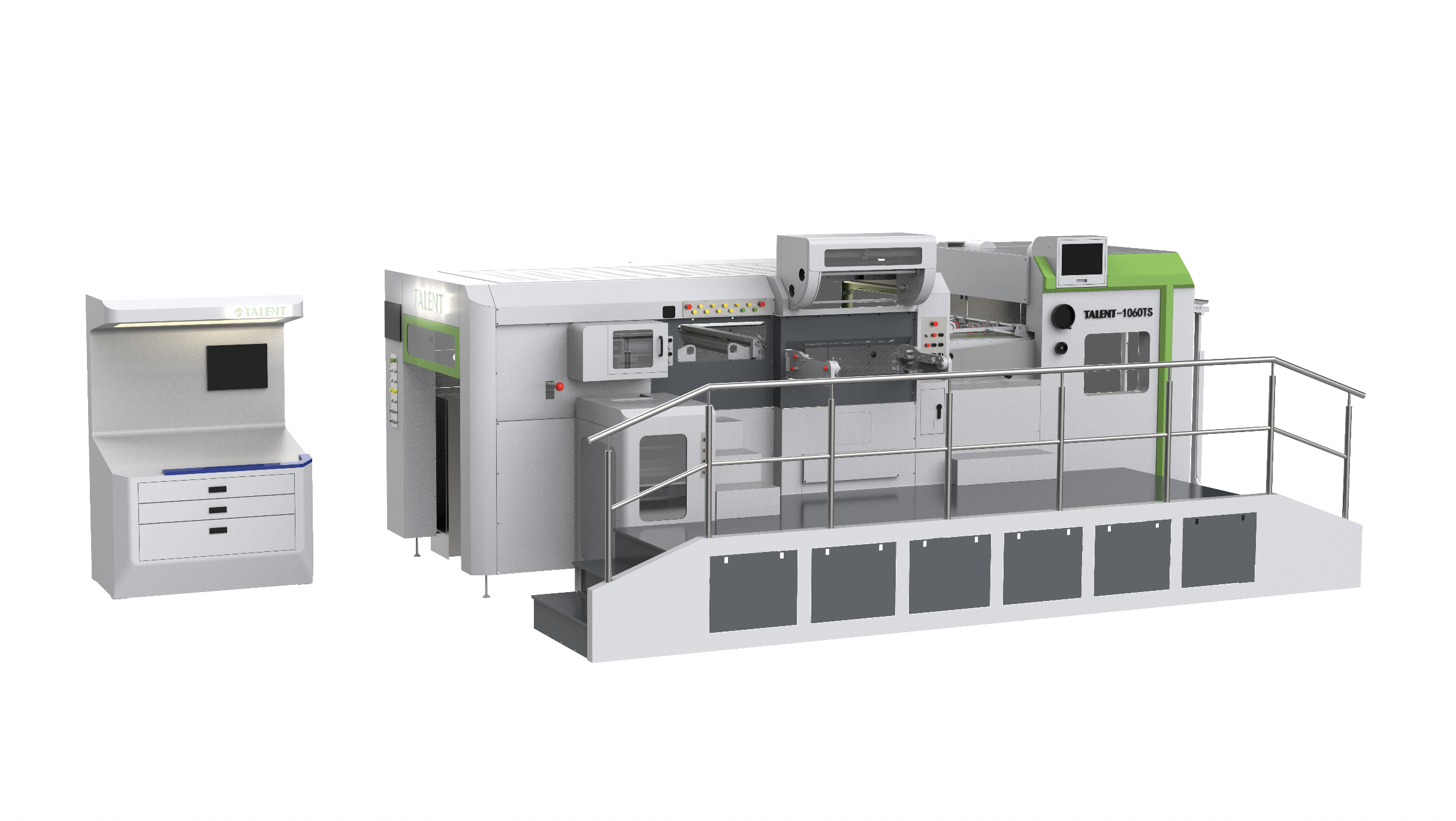

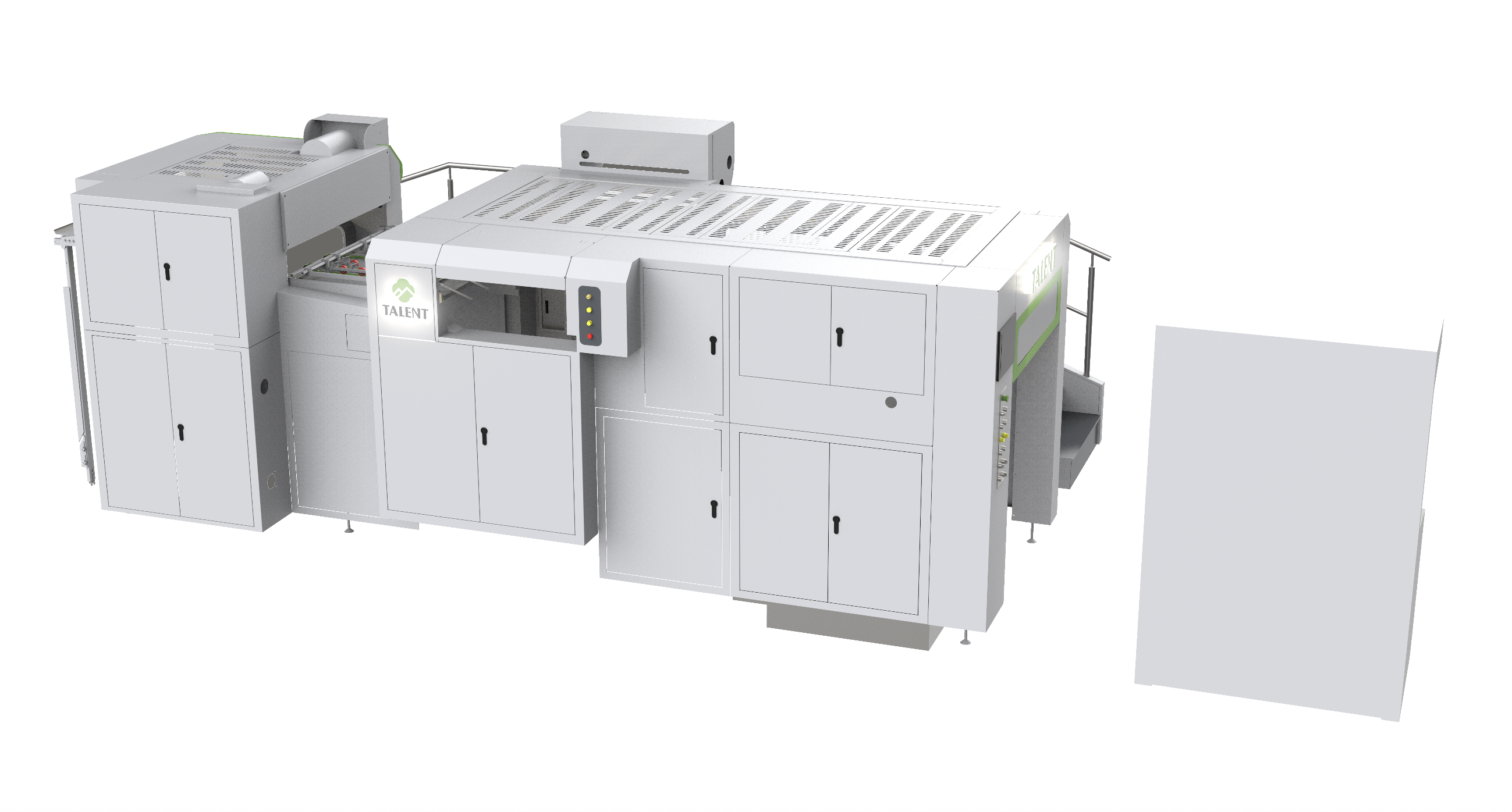

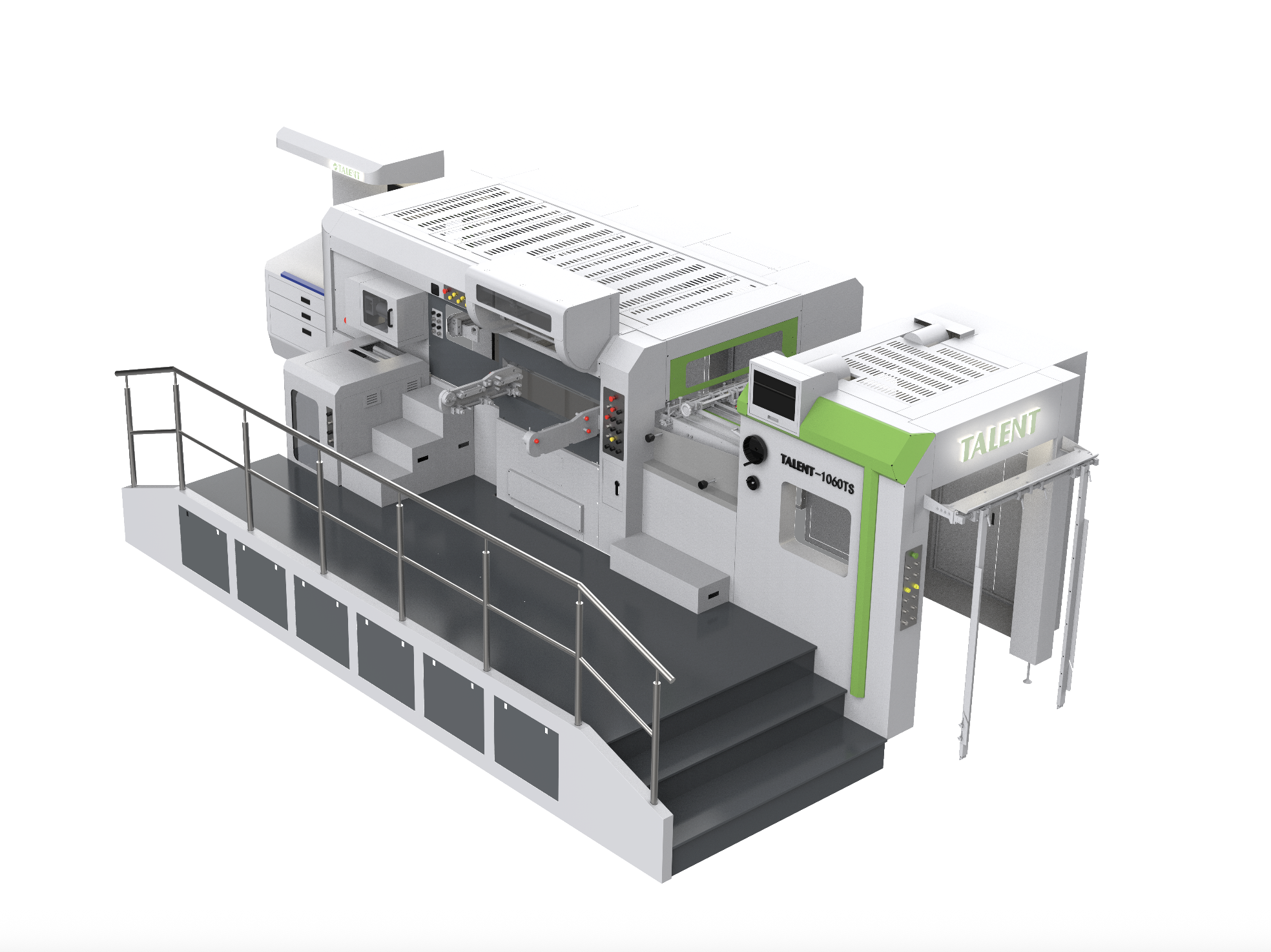

TALENT1060TS-Automatic Intelligence Deep Embossing Foiling Machine
| Automatic foil stamping machine with high pressure（TALENT060TS） | |
| Max.paper size | 1060*760mm |
| Min.paper size | 400*350mm |
| Max.die-cutting size | 1050*750mm |
| Max.stamping size | 1020*750mm |
| Max.stamping size | 6500sheets/hour |
| Max. die-cutting pressure | 600T |
| Max.feeding stack(H)incl. wooden pallet | 1500mm |
| Max.feeding stack(H) | 1300mm |
| Max.mechanical speed | 7500sheets/hour |
| Paper available size | 70-2000g/㎡card board,corrugated board≤4mm |
| Pressure range | +2mm |
| Knife height | 23.8mm |
| Die-cutting precision | ≤±0.1card /0.25mm corrugated |
| Foil roll diameter/width | ⌀220,20-1020mm |
| Heating system | 20cells，40-180°C adjustable |
| Gripper margin min.size | ≥6mm |
| Pneumatic requirement | ≥0.6mpa |
| Main motor power | 15kw |
| Total powe | 65kw |
| Power supply | 380v 50hz 3p |
| Weight | ≈24T |
| Dimension | 7400*4600*2650mm |
| Dimension(without step platform and flip rack) | 7600*2600*2650mm |
1060TS｜Automatic Hot Foil Stamping & Embossing Machine
Product Overview
The 1060TS is an integrated high-end solution combining deep embossing, hot foil stamping, and die cutting. Equipped with 20 independently controlled heating zones and a five-axis foil feeding system, it delivers precise, stable, and high-pressure results for sophisticated packaging needs.
Key Advantages
All-in-one design integrating embossing, foil stamping, and die cutting functions for seamless operations
Three vertical & two horizontal foil axes, each independently controlled for multi-directional precision stamping
Heavy-duty embossing platform reinforced for high-pressure applications
SIEMENS servo system and large-format touch screen for intelligent control and user-friendly operation
Technical Highlights
20-zone independent temperature control system with PID modules for energy-efficient and rapid heating
High-precision cam indexer + imported chain system from Taiwan ensure perfect sheet registration
High-speed feeder with four suction and four delivery heads, equipped with automatic correction and double sheet detection
Automated delivery section with dual-blower collection, sample extraction, and ERP integration via 21.5” industrial computer
Applications
Luxury packaging, perfume and wine boxes, hardcover book covers, metallic embossed artworks, multi-process high-end printed materials
