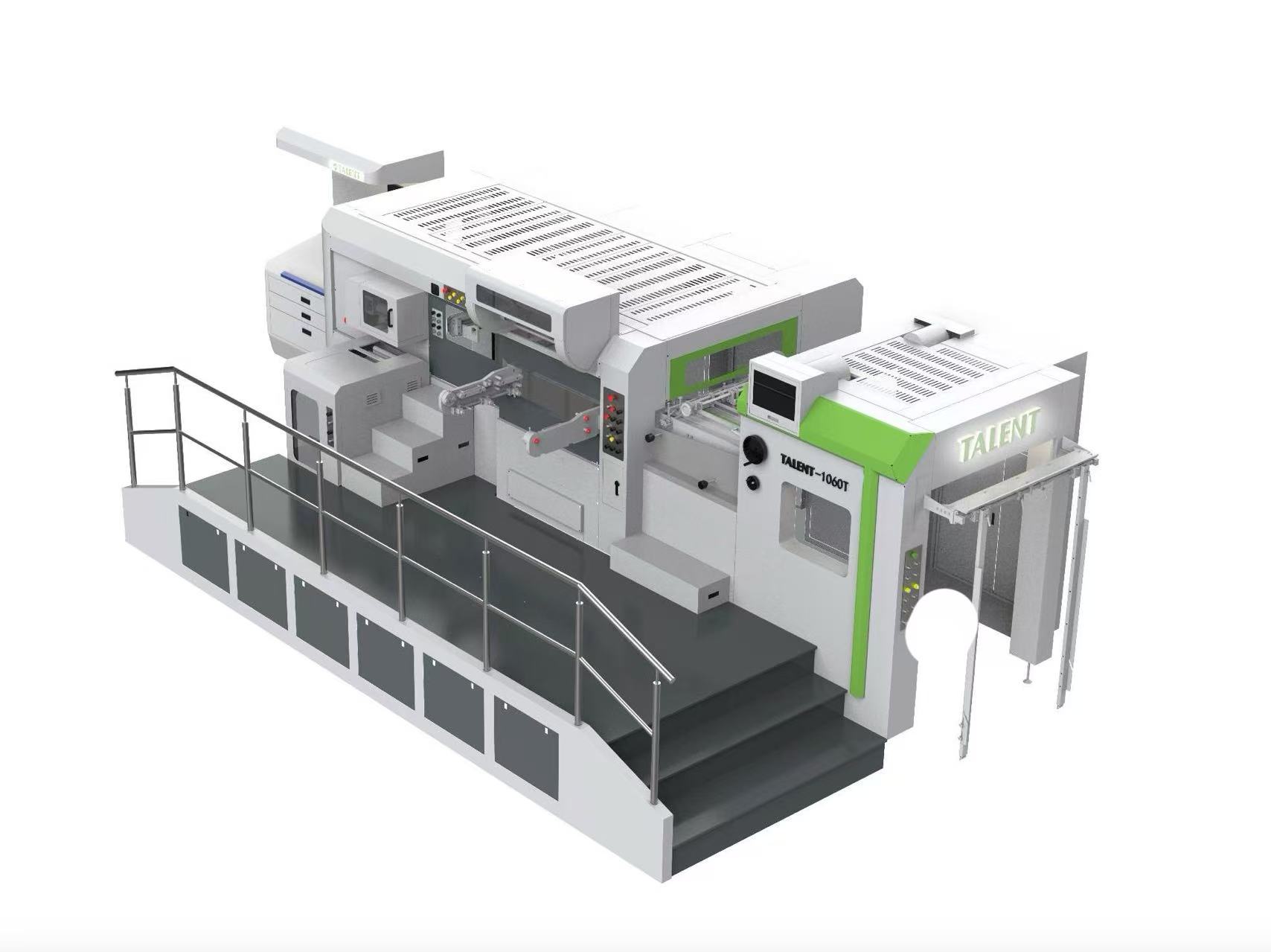

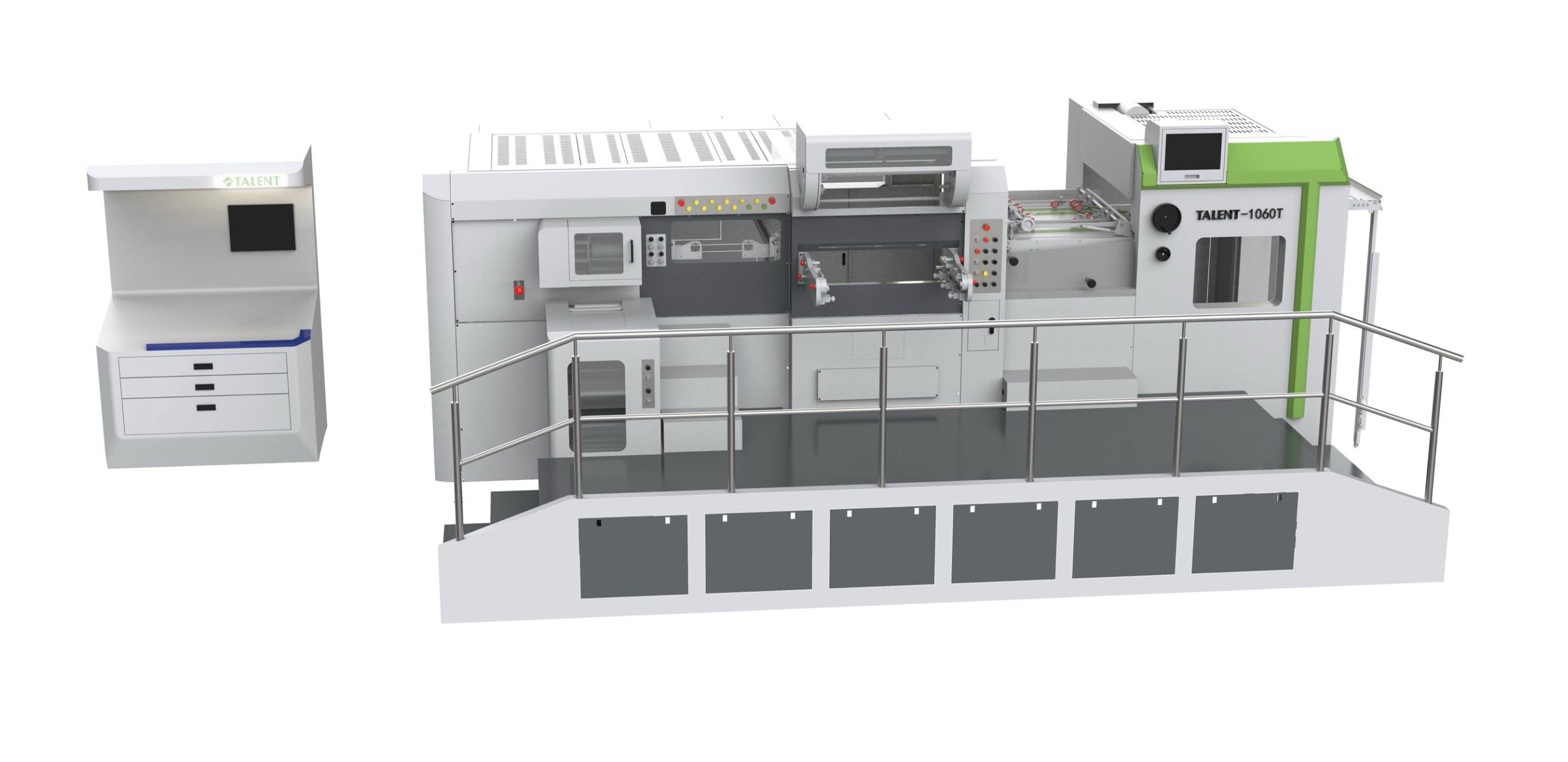

TALENT1060T-Automatic Foil Stamping Machine
| Automatic foil stamping machine（TALENT1060T） | |
| Max.paper size | 1060*760mm |
| Min.paper size | 400*350mm |
| Max.die-cutting size | 1050*750mm |
| Max.stamping size | 1020*750mm |
| Max.stamping size | 6000sheets/hour |
| Max. die-cutting pressure | 300T |
| Max.feeding stack(H)incl. wooden pallet | 1500mm |
| Max.feeding stack(H) | 1300mm |
| Max.mechanical speed | 7500sheets/hour |
| Paper available size | 70-2000g/㎡card board,corrugated board≤4mm |
| Pressure range | +2mm |
| Knife height | 23.8mm |
| Die-cutting precision | ≤±0.1card/0.25mm corrugated |
| Foil roll diameter/width | ⌀220,20-1020mm |
| Heating system | 20cells，40-180°C adjustable |
| Gripper margin min.size | ≥6mm |
| Pneumatic requirement | ≥0.6mpa |
| Main motor power | 15kw |
| Total powe | 65kw |
| Power supply | 380v 50hz 3p |
| Weight | ≈18T |
| Dimension | 7400*4600*2650mm |
| Dimension(without step platform and flip rack) | 7600*2600*2650mm |
Product description
1060T｜Automatic Hot Foil Stamping & Die Cutting Machine
Product Overview
The 1060T is a high-efficiency machine built for standard foil stamping operations. It shares the same five-axis foil feeding system and 20-zone heating control as the flagship model, delivering outstanding speed, reliability, and precision for mass production.
Key Advantages
Three vertical and two horizontal foil axes with independent drive systems for accurate stamping
20-zone intelligent heating with precise temperature regulation and energy-saving performance
Robust structure designed for long-term, high-volume operations
Efficient die cutting functionality with quick mold switching and high registration accuracy
Technical Highlights
SIEMENS servo-controlled foil feeding for synchronized speed matching
Modular die cutting unit supports creasing, full cut, half cut, and embossing
Automatic feeder with anti-offset correction, dual sheet detection, and seamless paper delivery
ERP-ready with 21.5” touch-screen inspection system
Applications
Cigarette boxes, pharmaceutical packaging, wine boxes, cosmetic cartons, high-volume foil-stamped print jobs
